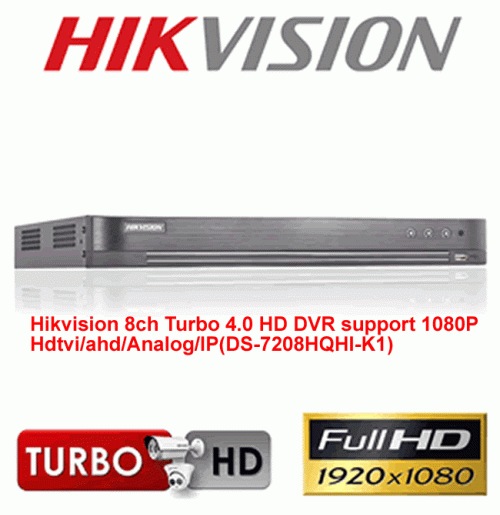

Hikvision 8ch Turbo 4.0 HD DVR 1080P-DS-7208HQHI-K1 -08060498353

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras

• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input

• Connectable to H.265+/H.265/H.264+/H.264 IP cameras

• Up to 4MP lite resolution for recording

• HDMI output at up to 4K (3840 × 2160) resolution for DS-7216HQHI-K1

• Long distance transmission over UTP and coaxial cable

• 4/8/16-ch synchronous playback

Video/Audio Input

Audio Input:        1-ch

Video Compression:        H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Analog and HD-TVI video input:        8-ch,BNC interface (1.0Vp-p, 75 Ω)connection

Supported camera types:        4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

Note: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.

Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30

Support CVI input:4 MP, 1080p25, 1080p30, 720p25, 720p30

Support CVBS input

Video Input Interface:        BNC (1.0 Vp-p, 75Ω)

Audio Compression:        G.711u

Audio Input Interface:        RCA (2.0 Vp-p, 1 kΩ)

Two-way Audio:        1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)

Video/Audio Output

HDMI/VGA Output:        1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

Recording resolution:        When 1080p Lite mode not enabled:

4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF

When 1080p Lite mode enabled:

4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF

Frame Rate:        Main stream:

When 1080p Lite mode not enabled:

For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps

(P)/30fps (N)

For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

For 1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode enabled:

4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Video Bit Rate:        32 Kbps-6 Mbps

Stream Type:        Video/Video&Audio

Two-way Audio:        1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)

Audio Output:        1-ch RCA(Linear, 1kΩ)

Audio Bit Rate:        64kbps

Dual Stream:        Support

Synchronous Playback:        8-ch

Network management

Remote connections:        32

Network protocols:        TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF

Hard Disk Driver

Interface Type:        1 SATA Interface

Capacity:        Up to 10 TB capacity for each disk

External Interface

Network Interface:        1; 10M / 100M self-adaptive Ethernet interface

USB Interface:        2 USB 2.0 Interfaces

Serial Interface:        1; standard RS-485 serial interface, half-duplex

General

Power Supply:        12V DC

Consumption:        ≤ 6W(without hard disks)

Working Temperature:        -10 oC to +55 oC (14 oF to 131 oF)

Working Humidity:        10% to 90%

Dimensions:        315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)

Weight:        ≤ 1.16 kg (2.6 lb)
