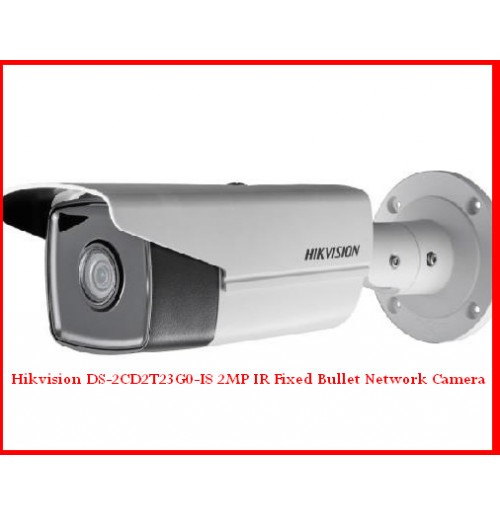

Hikvision DS-2CD2T23G0-I8 2MP IR Fixed Bullet Network Camera

Hikvision DS-2CD2T23G0-I8 2MP IR Fixed Bullet Network Camera

The Hikvision DS-2CD2T23G0-I8 2MP IR Fixed Bullet Network Camera is a 2MP bullet camera with powerful infra-red LEDs that work up to 80m. It is a great choice for outdoor applications with IP67 rated weatherproof housing and a built in bracket that has 3-axis adjustment. An optional junction box can be used to keep connections tidy.

This camera uses back light compensation (BLC) and 3D digital noise reduction technology (3D DNR) to improve image quality. It also uses a range of smart features such as motion detection, line crossing detection and intrusion detection to improve security further.

The DS-2CD2T23G0-I8 supports Hikvision's latest H.265+ video compression which dramtatically reduces bandwidth and storage usage. There is also a built-in micro SD card slot.

This camera can be powered with either a 12VDC power supply or by PoE. It can be accessed remotely through a browser or by Hik-connect.

Hikvision DS-2CD2T23G0-I8 Key Features

• 1/2.8" Progressive Scan CMOS
• 1920 × 1080@30fps
• 2.8/4/6/8 mm fixed lens
• Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
• H.265+, H.265, H.264+, H.264
• Three streams
• 120dB WDR
• 2 Behavior analyses, and face detection
• BLC/3D DNR/ROI
• IP67
• Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
• 3-Axis adjustment

Hikvision DS-2CD2T23G0-I8 Technical Specification

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Auto-Iris: No
• Day & Night: IR Cut Filter
• Digital Noise Reduction: 3D DNR
• WDR: 120dB
• 3-Axis Adjustment Pan: 0°to 360°, tilt: 0°to 90°, rotate: 0°to 360°

Smart Feature-set

• Behavior Analysis: Line crossing detection, intrusion detection
• Face Detection: Yes
• Region of Interest: 1 fixed region for main stream and sub-stream

Network

• Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnPTM, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
• General Function One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Firmware Version V5.5.2
• API: ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users, 3 levels: Administrator, Operator and User
• Client: iVMS-4200, Hik-Connect, iVMS-5200
• Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• Video Output: No
• On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
• SVC: H.264 and H.265 encoding
• Reset Button: Yes

General

• Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Power Supply 12 VDC ± 25%, Φ 5.5 mm coaxial power plug, PoE (802.3af, class 3)
• Power Consumption and Current: I8: 12 VDC, 0.95A, max. 11.5W PoE (802.3af, 37V to 57V), 0.35A to 0.1A, max. 12.5W
• Protection Level: IP67, TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Material: Metal
• Dimensions:
